 Grader blade
 New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

skunkhome

USA
11546 Posts

Posted - 05/31/2010 :  06:26:57  Show Profile Send skunkhome a Private Message  Reply with Quote

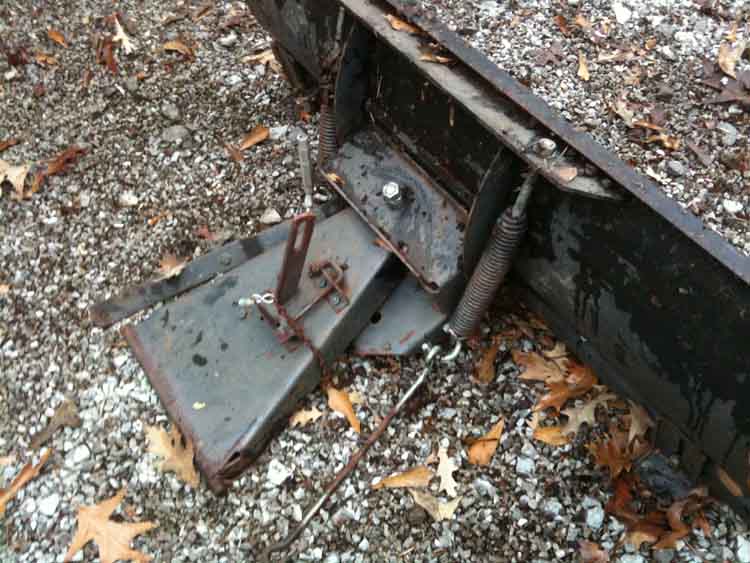

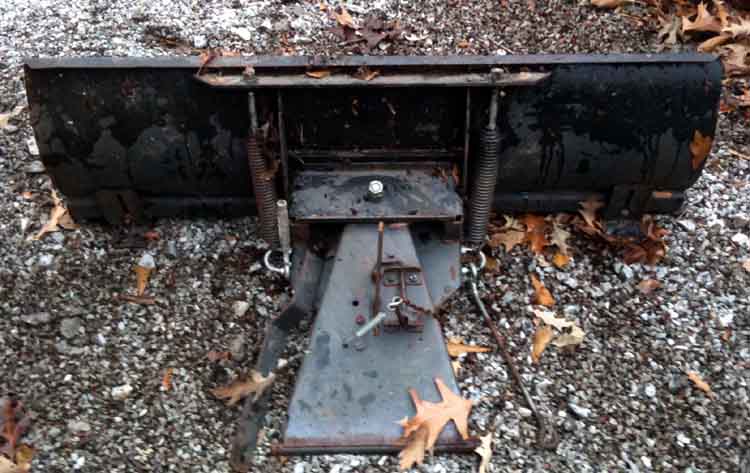

I have been having an old Sears spring loaded dozer blade ever since I got my tractor and would like to cut it down and make it into a belly mounted grader. I would like to reuse the transversing mechanism but need to know what the distance is from the hitch points to the blade, how deep the blade should be, and I suppose I need to know the amount of drop I should have.



Phil



"They that can give up essential liberty to obtain a little temporary safety deserve neither safety nor liberty."

Benjamin Franklin

Edited by - skunkhome on 05/31/2010 06:38:37

acb10_64

USA
801 Posts

Posted - 05/31/2010 :  10:46:24  Show Profile  Visit acb10_64's Homepage Send acb10_64 a Private Message  Reply with Quote
Phil, you probably already saw this, but thought i'd post it anyway, it may be helpful.

http://www.simpletractors.com/attachments/grader_specs.htm

Wes



2 1964 Allis Chalmers B-10's


Edited by - acb10_64 on 06/01/2010 05:43:27
Go to Top of Page

7010b1

USA
670 Posts

Posted - 05/31/2010 :  11:43:03  Show Profile Send 7010b1 a Private Message  Reply with Quote
phil go down to the DOT country road devision and ask if that have any old grader blades that you could buy they will show you the pile and say take what you need... will show pic later for you.. ps mine was free... good luck. if not sell that one you have and put tords some steel.

spark up your life with a E3 plug..

,, , ,,,

b1, earlys, big, b12, b110's, 712, 7010, 1316h, homelite T15 and T16, two 410's, over all 20+ of them
Go to Top of Page

skunkhome

USA
11546 Posts

Posted - 06/01/2010 :  06:12:23  Show Profile Send skunkhome a Private Message  Reply with Quote
Nate, someone in government grades country roads?? . Not in Louisiana. LOL. but seriously if I found such a place would they have grader blades that were small enough to put on a B112? As for my dozer blade I tried selling it locally but there is no market. Wes, yes thanks, I had seen that but forgot where...thanks for the link.

Phil



"They that can give up essential liberty to obtain a little temporary safety deserve neither safety nor liberty."

Benjamin Franklin

Edited by - skunkhome on 06/01/2010 06:28:28
Go to Top of Page

7010b1

USA
670 Posts

Posted - 06/01/2010 :  14:34:22  Show Profile Send 7010b1 a Private Message  Reply with Quote
lol some places we get it about 3 times a year when my mustang falls in a crader and they have to pull me back out lol

spark up your life with a E3 plug..

,, , ,,,

b1, earlys, big, b12, b110's, 712, 7010, 1316h, homelite T15 and T16, two 410's, over all 20+ of them
Go to Top of Page

ATF

USA
1892 Posts

Posted - 08/03/2010 :  10:15:56  Show Profile  Visit ATF's Homepage Send ATF a Private Message  Reply with Quote
How about cuttin a large piece of iron pipe with a torch. 12-18 inch iron culvert pipe should work nicely, go to your scrap steel yard and find you a 36-42 inch piece and make two. maybe have them cut it in two, then just use your angle grinder to clean it up.

Go to Top of Page

sleepy

195 Posts

Posted - 08/03/2010 :  11:06:41  Show Profile  Visit sleepy's Homepage Send sleepy a Private Message  Reply with Quote
A hot water tank will work also but will be lighter than a grader blade.
Go to Top of Page

Ezra

Canada
42 Posts

Posted - 07/20/2011 :  02:40:32  Show Profile  Visit Ezra's Homepage  Send Ezra an ICQ Message Send Ezra a Private Message  Reply with Quote
I wish you were closer to me Phil. I would get that blade off of you with a heart beat. that sears of mine would take that blade just fine. How much were you asking for it if you don't mind me asking
Go to Top of Page

Ezra

Canada
42 Posts

Posted - 07/21/2011 :  21:22:47  Show Profile  Visit Ezra's Homepage  Send Ezra an ICQ Message Send Ezra a Private Message  Reply with Quote
[quote]Originally posted by skunkhome

I have been having an old Sears spring loaded dozer blade ever since I got my tractor and would like to cut it down and make it into a belly mounted grader. I would like to reuse the transversing mechanism but need to know what the distance is from the hitch points to the blade, how deep the blade should be, and I suppose I need to know the amount of drop I should have.




God i wish i lived closer to you. I would have a hoot getting to see some of the stuff you have. Im trying to upgrade that Sears tractor i got from the scrap yard to take a blade i got from a friend/ Your blade would work without any changes at all.
Go to Top of Page
